Qubic System QS-220

Innovative technology, modular and compact design and exceptionally quiet operation make the QS-220 an excellent motion base not only for professional applications, but also for home users in various types of cockpits. Additional QS-220 kits can be configured as a 4- and 6-time launch system to provide 3/4/6DOF using dedicated cockpits from the Qubic System product line.

MOST IMPORTANT FEATURES OF THE QS-220 KIT
Maximum speed: 800 mm/s Maximum acceleration: 0.8 G Actuator stroke: 100 mm | 3.93 inDelay: <8 ms Maximum control frequency: 1000 Hz Vibration frequency range: 0-100 Hz

QS-220-PL KEY FEATURES KIT
Proudly made in the EU: Designed, engineered and manufactured in Poland. Super quiet – extremely quiet operation. Used by professional race car drivers and co-drivers around the world. The highest quality ecosystem for personal and commercial applications. Supported by dedicated QubicManager software: motion adjustment, motion post-processing. , extensive diagnostics or easy and quick use of predefined profiles Support for VR HeadWay technology (VR sickness compensation) Over 80 integrated and supported racing and aviation games Compatible with professional simulation applications - Motion SDK (FSMI or FSDI) for software developers

What's included:

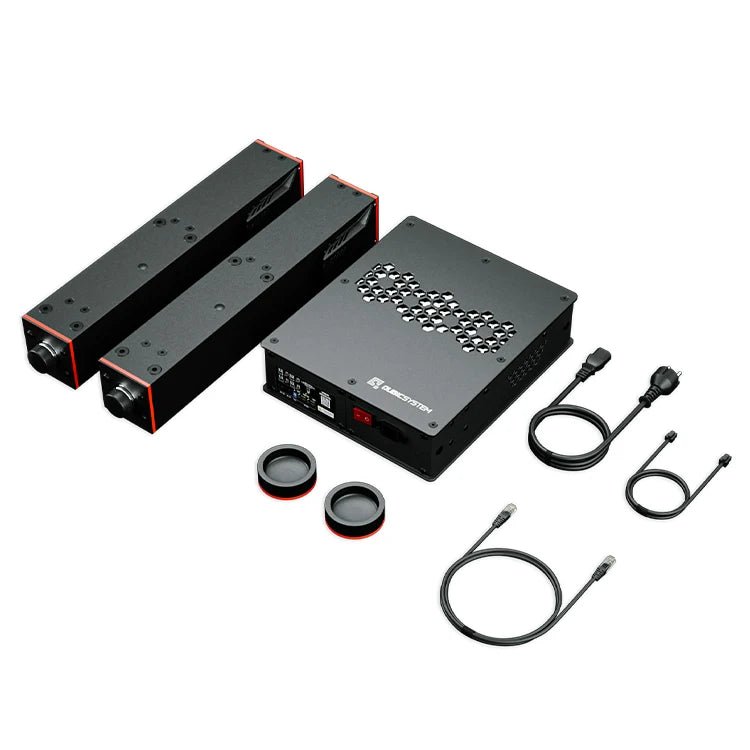

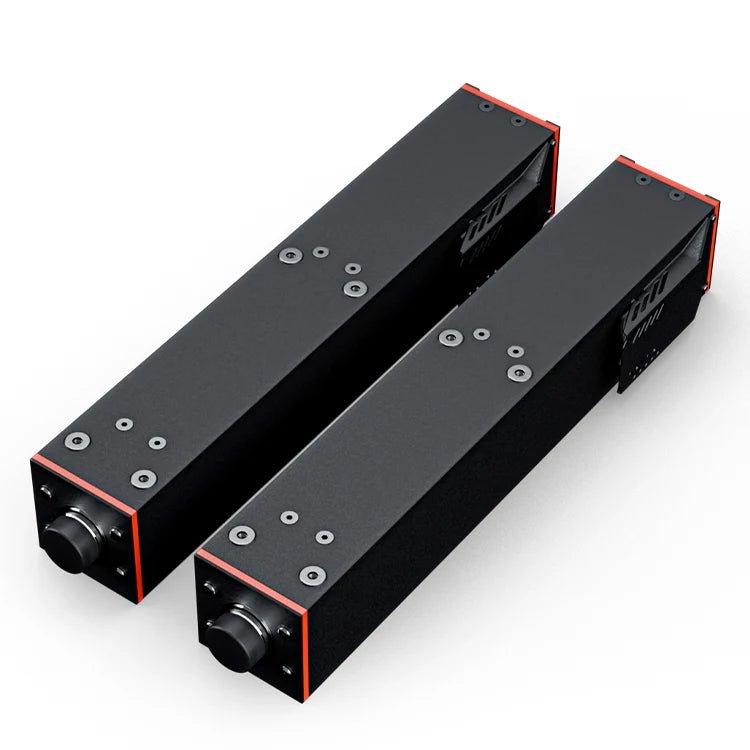

Box 1. QS-220 motion kit: 2x QS-L1 – linear actuator with cup holder 1x QS-SB2 – power supply cabinet (control module) 1x QS-SBML-2 – motion lock cable (up-link/down-link) – Length 2 m 1x Power cable
Box 1. Dimensions: 71 cm x 53 cm x 16 cm | 27.9 inches x 20.9 inches x 6.3 inches
Box 1. Weight30 kg| 66.14 pounds

Box 2. QS-MC6 controller set: 1x QS-SBML-1 – motion lock with an additional 2 m cable 1x QS-MBT-1 – M-BUS terminator 1x USB cable – 0.5 m cable (USB micro B) 1x CAT.5E patch cord – length 2 m
Box 2. Dimensions20 cm x 20 cm x 13 cm | 7.9 inches x 7.9 inches x 5.1 inches
Box 2. Weight1 kg | 2.2 lbs

Technical Specifications:

GENERAL SPECIFICATIONS OF THE QS-220 KIT
Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules) Actuator stroke: 100 mm |3.93 inch
Maximum Speed:◦ Q Mode (230V): 800mm/s◦ Performance Mode (115V/230V): 400mm/s◦ Heavy Duty Mode (115/230V): 300mm/s
Maximum Acceleration:◦ Q Mode (230V): 0.8G*◦ Performance Mode (115V/230V): 0.7G*◦ Heavy Duty Mode (115/230V): 0.4G**value acceleration is limited for safety reasons
Load capacity in 3DOF configuration (2x QS-220-PL):◦ Q mode: 200 kg◦ Performance mode: 250 kg◦ Heavy Duty mode: 350 kg
Vibration frequency range: 0-100 Hz Maximum control frequency: 1000 Hz Delay: <8 ms
Product weight: 30 kg | 66 lbs

MAIN DIMENSIONSTotal length: QS-L1: 106 mm | 4.17 inch, QS-SB2: 355 mm | 13.98 inTotal width: QS-L1: 92 mm | 3.62 inch, QS-SB2: 300 mm | 11.81 inch Total height: QS-L1: 553-653 mm | 22-26 inch, QS-SB2: 92 mm | 3.62 inch Cable length (QS-L1 actuator - QS-SB2 power cabinet): 1150 mm | 45.2 inches

POWER REQUIREMENTS
Power Requirements: 115/230 VAC, Single Phase, Medium Power Consumption (4 Actuator Configuration):
* Q mode (230V):
* Converter specifications
* Average power [kVA]: 1.2
* Peak power [kVA]: 2.2
* Breaker specification
* Peak current [A]: 10
* Electric energy usage
* Average power (load test) [kW]: 0.5
* Average power (typical game) [kW]: 0.03
* Performance Mode:
* Converter Specification(230V/110V)
* Average power [kVA]: 0.9 / 0.7
* Peak power [kVA]: 1.6 / 1.5
* Circuit breaker specification (230V/110V)
* Peak current [A]: 7/13
* Electricity consumption (230V / 110V)
* Average power (load test) [kW]: 0.3 / 0.3
* Average power (typical game) [kW]: 0.04 / 0.05
* Hard work mode:
* Converter Specification(230V/110V)
* Average power [kVA]: 0.7 / 0.7
* Peak power [kVA]: 1.5 / 1.5
* Circuit breaker specification (230V/110V)
* Peak current [A]: 7 / 12
* Electricity consumption (230V / 110V)
* Average power (load test) [kW]: 0.3 / 0.3
* Average power (typical game) [kW]: 0.3 / 0.06
Connection: USB
